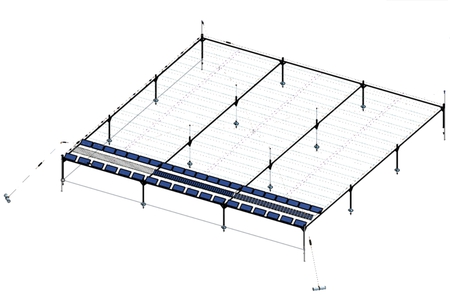

APV-IN-system with CONCRETE POLES

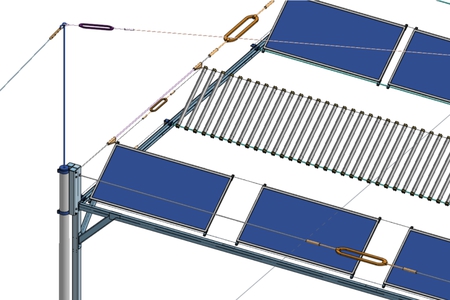

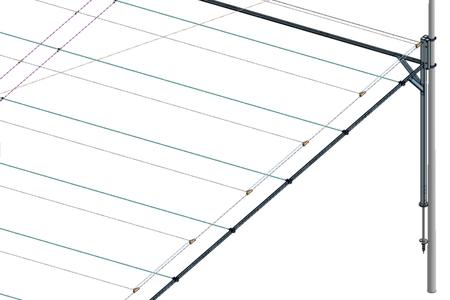

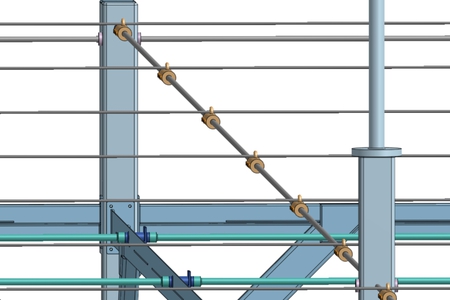

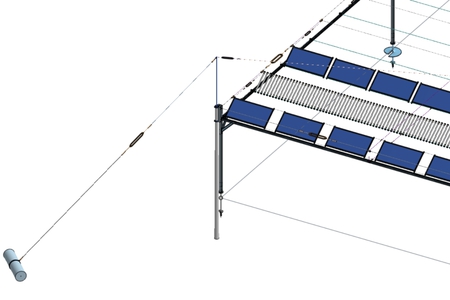

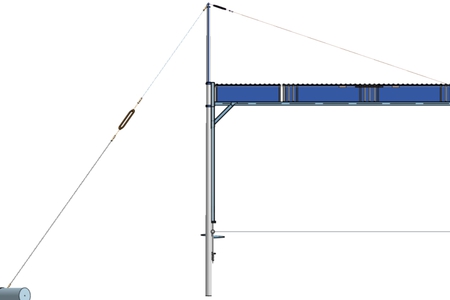

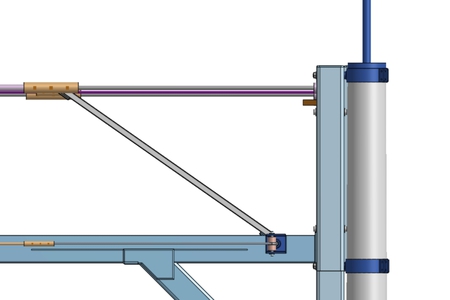

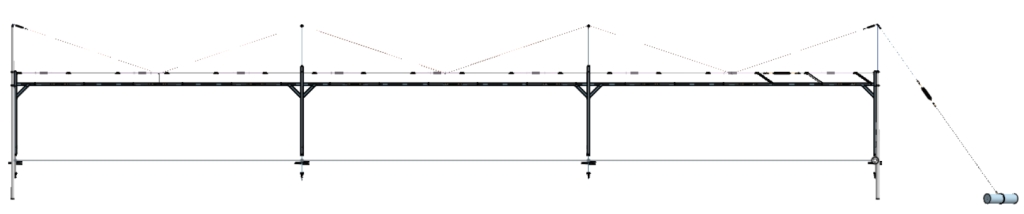

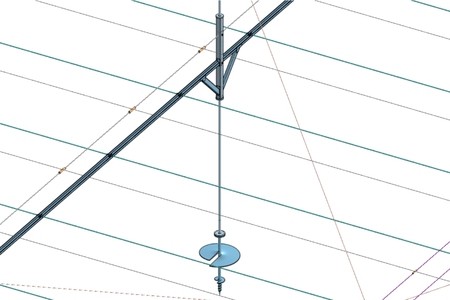

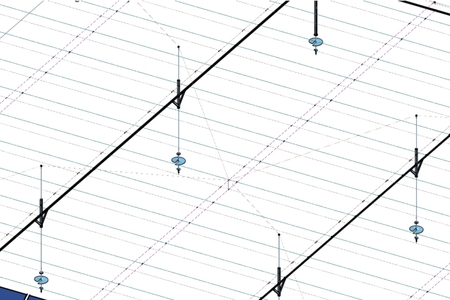

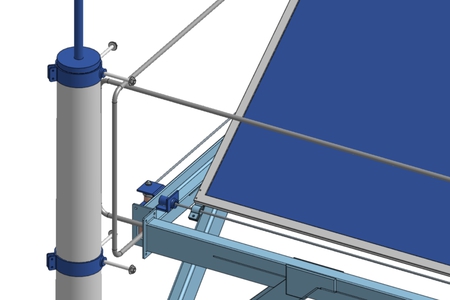

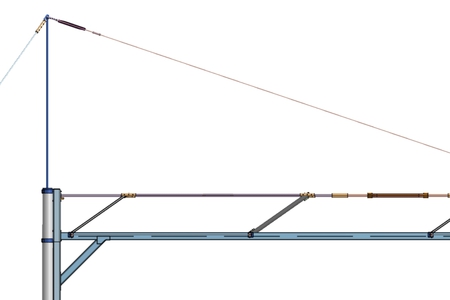

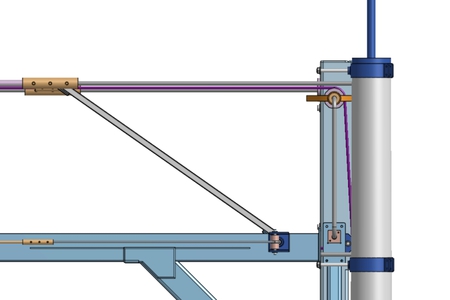

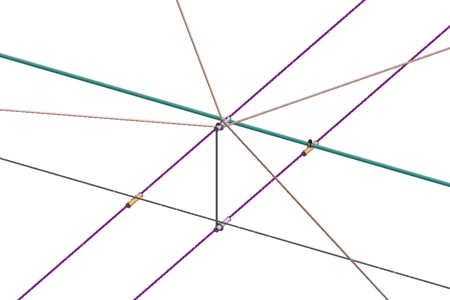

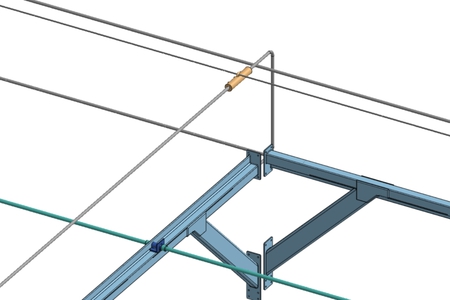

Concrete poles placed in the corners of steel construction and diagonal support cables contribute to the stability, together with beam profiles at the south and north side. All horizontal beam profiles consist of a rectangular Jäkel-tube welded with an L-shape angle profile. Through the Jäkel-tubes are lead steel cables fixed by elements from plastic.

APV_in20_APVp3 - Onshape public project

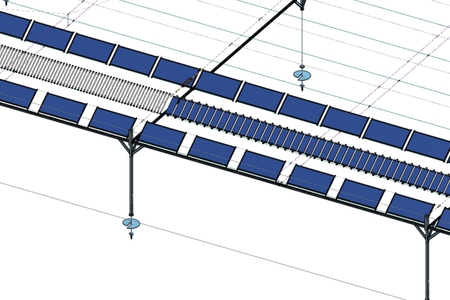

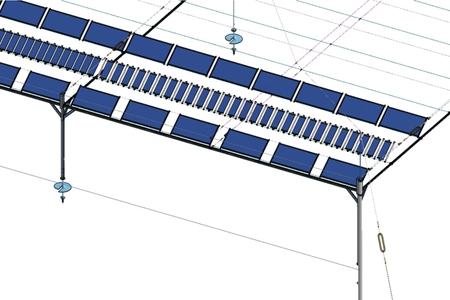

PV modules distribution

Standard plane modules with dimentions of cca 2x1 m or - ideally - replaced by cylindrical modules of 1m length or by narrow plane modules of 20-30 cm width and 1m axial length or by a combination of cylindrical and narrow plane modules.

Zenit angle

The tilt suggested for Prague's latitude 50° N

35°

Gap angle & Row distance

A gap between rows of modules preventing the intrinsic shading

3 * 6 rows per 3 * 15 m lenght of project field

20° & 2.6 m

Solar sharing ratio - 6 / 7 panels per 15m

PV active area compared to used field area, 18/21 panels in 18 rows

6 * 3 * 18 * ( 2m * 1m ) / ( 3 * 15m * 3 * 15m)

32% / 38%

Bill of materials - CONCRETE POLES

CODE	DIMENSIONS	MATERIAL	VOLUME	MASS
JB 1-4 xyz I-III sn Jäkel Beam 1-4 walls xyz rows I-III cols south north	50x50x2 mm 1490 cm long 4x3 + 2x3 pcs	S235JRH steel hollow square tube	3.74 cm² 268.2 m 100 dm³	3.02 kg/m 810 kg
JQ 1-4 xyz SN Jäkel Quer 1234-w xyz-r South+North	100x50x5 mm 2x100 cm across 4x3 + 2x3 pcs	S235JRH steel hollow rectangular tube	13.36 cm² 36 m 48 dm³	10.187 kg/m 367 kg
JC 1234 abcd Jäkel Column 1234 - walls abcd - lines	100x100x5 mm 430 cm high 2x4 + 2x2 pcs	S235JRH steel hollow square tube	18.36 cm² 51.6 m 95 dm³	13.969 kg/m 721 kg
JJ 23 sn Jäkel Jäkl 2nd + 3rd walls south + north	100x100x6 mm 75 cm high 2x2 pcs	S235JRH steel hollow square tube	21.63 cm² 3 m 6.5 dm³	16.493 kg/m 49.5 kg
JJJ 14 sn Jäkel Jäkl Jäkl 1st + 4th walls south + north	100x100x6 mm 75 cm high 2x2x2 pcs	S235JRH steel hollow square tube	21.63 cm² 6 m 13 dm³	16.493 kg/m 99 kg
JAC 23 sn Jäkel Ass Column 2nd + 3rd walls south + north	100x100x5 mm 172 cm high 2x2 pcs	S235JRH steel hollow square tube	18.36 cm² 6.9 m 13 dm³	13.969 kg/m 96 kg
JHC 23 sn Jäkel Head Column 2nd + 3rd walls south + north	70x70x5 mm 7 cm long 2x2 pcs	S235JRH steel hollow square tube	12.36 cm² 0.28 m 0.35 dm³	9.415 kg/m 2.6 kg
LB 1-4 xyz I-III sn L-angle Beam 1-4 walls xyz rows I-III cols south north	50x50x3 mm 1490 cm long 4x3 + 2x3 pcs	S235JR steel angle Alu 6060 aluminium angle	2.8 cm² 268.2 m 75 dm³	2.24 kg/m 601 kg 0.79 kg/m 212 kg
TDJC 1234 abcd Tube Disk Jäkel 1234 - walls abcd - lines	51.0x8.8 mm 50 cm high 2x4 + 2x2 pcs	11 353.0 steel hollow circular tube	7.0 dm³	9.14 kg/m 55 kg
TDTC 23 bc Tube Disk Tube 2nd + 3rd walls bc - lines	38.0x7.1 mm 30 cm high 2x2 pcs	11 353.0 steel hollow circular tube	6.89 cm² 1.2 m 0.8 dm³	5.40 kg/m 6.5 kg
TC 23 bc Tube Column 2nd + 3rd walls bc - lines	44.5x3.2 mm 360 cm high 2x2 pcs	11 353.0 steel hollow circular tube	4.15 cm² 14.4 m 6.0 dm³	3.25 kg/m 47 kg
TTC 23 bc Tube Top Column 2nd + 3rd walls bc - lines	44.5x3.2 mm 240 cm high 2x2 pcs	11 353.0 steel hollow circular tube	4.15 cm² 9.6 m 4.0 dm³	3.25 kg/m 31.2 kg
Trip I-III xyz 1-6 Tube rope in pipe I-III cols xyz rows 123456 - pipes	20.0x2.0 mm 1499 cm long 3x3x6 pcs	11 353.1 steel hollow circular tube	1.13 cm² 809.5 m 91.5 dm³	0.888 kg/m 719 kg
TweFrip I-III xyz 1-6 Tube west+east Fix ropeinpipe I-III cols xyz rows 1-6 pipes	30.0x5.0 mm 2 cm long 2x3x3x6 pcs = 108 pcs	11 353.1 steel hollow circular tube	3.93 cm² 2.16 m 0.85 dm³	3.083 kg/m 6.7 kg
TGrip 1234 xyz 1-6 Tube Go thrue ropeinpipe 1-4 walls xyz rows 1-6 pipes	30.0x5.0 mm 7 cm long 4x3x6 pcs = 72 pcs	11 353.1 steel hollow circular tube	3.93 cm² 5.04 m 1.98 dm³	3.083 kg/m 15.5 kg
CFAU xyz 1-6 we Cable Fixator Axis Upper xyz - rows 1-6 lines west+east	40x12 mm 20 cm long 200x47x15 mm 2x3x6 pcs	S235JR+N steel sheet	211 cm³/pcs 71 cm³/pcs 10 dm³	7.85 kg/dm³ 80 kg
CGAU xyz 1-6 we Cable Gothrue Axis Upper xyz - rows 1-6 lines west+east	40x12 mm 20 cm long 2x3x6 pcs	S235JR steel bar	10.6 cm² 7.2 m 7.6 dm³	7.85 kg/dm³ 60 kg
CSG pr I-III xyz 1-6 Cable Support Go pipe+rope I-III cols xyz rows 1-6 lines	25.0x7.5 mm 12.5 cm long 2x3x3x6 pcs = 108 pcs	S235JR steel bar	4.12 cm² 13.5 m 5.6 dm³	7.85 kg/dm³ 44 kg
CPB sw + se Concrete Pole Bar south row west + east	Ø 30 mm 285 cm high 2 pcs	S235JR steel bar	7.07 cm² 5.7 m 4.0 dm³	5.55 kg/m 31.6 kg
APC 1-4 sn we ud Axis Pulley Column 1-4 walls sou+nor west+east up+down	Ø 20 mm 12 cm long 4x4 + 2x4 pcs	S235JR steel bar	3.14 cm² 288 cm 905 cm³	2.47 kg/m 7.1 kg
AHC 23 sn Axis Head Column 2nd + 3rd walls south + north	Ø 20 mm 9 cm long 2x2 pcs	S235JR steel bar	3.14 cm² 36 cm 113 cm³	2.47 kg/m 0.89 kg
APS sn I-III Axis Pulley Support south + north I-II-III columns	Ø 12 mm 9 cm long 2x3 pcs	S235JR steel bar	1.13 cm² 54 cm 61 cm³	0.888 kg/m 0.48 kg
DBC 1234 abcd Disk Bottom Col 1234 - walls abcd - lines	200 mm diam 2 cm high 2x4x4 pcs	S235JR steel bar	314 cm² 0.64 m 20.1 dm³	246.62 kg/m 158 kg
DAC 23 bc Disk Assem Col 2nd + 3rd walls bc - lines	150 mm diam 2 cm high 2x2 pcs	15 230.3 steel bar	177 cm² 0.08 m 1.4 dm³	138.72 kg/m 11.1 kg
DTC 23 bc Disk Top Column 2nd + 3rd walls bc - lines	150 mm diam 2 cm high 2x2 pcs	15 230.3 steel bar	177 cm² 0.08 m 1.4 dm³	138.72 kg/m 11.1 kg
CPD sw + se Concrete Pole Disk south-west south-east	140 mm diam 2 cm high 2 pcs	15 230.3 steel bar	153.94 cm² 4 cm 0.62 dm³	120.84 kg/m 4.8 kg
CPD nw ne Concrete Pole Disk north-west north-east	120 mm diam 2 cm high 2 pcs	15 230.3 steel bar	113 cm² 4 cm 0.45 dm³	88.781 kg/m 3.6 kg
PTJC 1234 abcd Plate Top Jäkl Col 1234 - walls abcd - lines	5x100x100 mm 3x4 + 2x4 + 1x4 = 24 pcs	S235JR+N steel sheet	0.240 m² 5 mm 1.2 dm³	39.25 kg/m² 9.4 kg
PJB 1-4 xyz I-III sn Plate Jäkel Beam 1-4 walls xyz rows I-III cols south north	5x80x150 mm 2x4x3 + 2x2x3 = 36 pcs	S235JR+N steel sheet	0.432 m² 5 mm 2.2 dm³	39.25 kg/m² 17.0 kg
PJQ 1-4 xyz I-III sn Plate Jäkel Quer 1-4 walls xyz rows I-III cols south north	5x80x270 mm 2x4x3 + 2x2x3 = 36 pcs	S235JR+N steel sheet	0.778 m² 5 mm 3.9 dm³	39.25 kg/m² 30.5 kg
PVrip WE xyz 1-6 Plate Vpulley rope in pipe West East xyz rows 1-6 pipes	(65 + 70 + 65) x 5 x 60 mm = 5x60x200 mm 2x3x6 = 36pcs	S235JR+N steel sheet	0.432 m² 5 mm 2.2 dm³	39.25 kg/m² 17.0 kg
PFrip 1-4 xyz 1-6 Plate Fixator rope in pipe 1-4 walls xyz rows 1-6 pipes	5x60 x (45+45) = 5x60x90 mm 4x3x6 = 72pcs	S235JR+N steel sheet	0.389 m² 5 mm 1.9 dm³	39.25 kg/m² 15.3 kg
PVS sn I-III Plate Vpulley Supp south + north I-III columns	(45 + 70 + 45) x 5 x 70 mm = 5x70x160 mm 2x3 = 6pcs	S235JR+N steel sheet	6.72 dm² 5 mm 0.34 dm³	39.25 kg/m² 2.6 kg
OdCP sn we O-ring down Concrete Pole sou+nor west+east	(30 + 443 + 30) x 5 x 50 mm = 5x50x503 mm 2x2x2 pcs	S235JR+N steel sheet	0.201 m² 5 mm 10.1 dm³	39.25 kg/m² 7.9 kg
CGO sw se Cable Ground O-shape sheet south west + east	(40 + 1571 + 40) x 5 x 50 mm = 5x50x1651 mm 2 pcs	S235JR+N steel sheet	0.165 m² 5 mm 8.3 dm³	39.25 kg/m² 6.5 kg
CipD xyz 12 34 56 Cable in pipes Double xyz rows 1+2 3+4 5+6 lines	2 x 257.5 - 50 + 2 x 4518 cm = 95 m long 3x3 pcs	7x19 INOX rustproof steel	Ø 8 mm 855 m	0.22 kg/m 188 kg
Rip xyz 123456 Rope in pipes xyz - rows 123456 - lines	3x15 + 2x0.25 m = 45.5 m direct = 47 m spiral 3x6 pcs	Timber 3.0 PE rope	Ø 3-4 mm 846 m	2.5 g/m 2.1 kg
CAU xyz 12 34 56 Cable Axis Upper xyz - rows 1+2 3+4 5+6 lines	2 x 257.5 - 50 + 2 x 4518 cm = 95 m long 3x3 pcs	7x19 INOX rustproof steel	Ø 8 mm 855 m	0.22 kg/m 188 kg
PAUw xyz 12 34 56 Pipe Axis Upper west xyz - rows 1+2 3+4 5+6 lines	20.0x2.0 mm 236 cm long 3x3 pcs	11 353.1 steel hollow circular tube	1.13 cm² 21.2 m 2.4 dm³	0.888 kg/m 18.9 kg
PAUe xyz 12 34 56 Pipe Axis Upper east xyz - rows 1+2 3+4 5+6 lines	14.0x3.0 mm 255 cm long 3x3 pcs	11 353.1 steel hollow circular tube	1.03 cm² 23.0 m 2.4 dm³	0.814 kg/m 18.7 kg
CT UL xyz 12 34 56 Cabel Tensioner Upper / Lower axis xyz - rows double	M 12 560 kp 2x3x3 pcs	DIN 1480 cable tensioner galvanized	83 mm tension length	0.4 kg/pcs 7.2 kg
CUL 1234 sn Cable Upper Lower 1234 - walls south + north	2 x 4527 - 50 + 2 x 61.9 / 50 cm = 91.3 / 91 m long 4 / 2 pcs	6x19 Seale galvanized steel	Ø 16 mm 547 m	1.05 kg/m 575 kg
CTUL 1234 sn Cable Tensioner Upper + Lower axis 1-4 walls sou+nor	M 20 1700 kp 4 + 2 pcs	DIN 1480 cable tensioner galvanized	132 mm tension length	1.6 kg/pcs 9.6 kg
CS I-II-III Cable Support I-II-III columns	2 x 4510 - 50 + 2 x 53 cm = 90.8 m long 3 pcs	7x19 INOX rustproof steel	Ø 10 mm 272 m	0.38 kg/m 103.5 kg
CTS I-II-III Cable Tensioner Support I-II-III columns	M 16 1100 kp 3 pcs	galvanized	length	1.0 kg/pcs 3.0 kg
DCS 12 Diagonal Cable Support 1st + 2nd item	2 x 1103 - 50 + 4 x 1089 cm = 65.1 m long 2 pcs	7x19 INOX rustproof steel	Ø 10 mm 130 m	0.38 kg/m 49.5 kg
DCTS 12 Diagonal Cable Tensioner Support 1st + 2nd item	M 16 1100 kp 2 pcs	DIN 1480 cable tensioner galvanized	95 mm tension length	1.0 kg/pcs 2.0 kg
CSY sw + se Cable Support Y-u south-west south-east	427 cm long 2 pcs	7x19 INOX rustproof steel	Ø 10 mm 8.5 m	0.38 kg/m 3.2 kg
CSX sw + se Cable Support X-d south-west south-east	807 cm long 2 pcs	6x19 FE PVC coated galvanized steel	ø 10 mm 16.1 m	0.4 kg/m 6.5 kg
CTXy sw + se Cable Tensioner XY south-west south-east	M 16 1100 kp 2 pcs	DIN 1480 cable tensioner galvanized	95 mm tension length	1.0 kg/pcs 2.0 kg
REinJB1-4xyzI-IIIsn+ud Rope Elem in Jäkl Beam 1-4 walls xyz rows up+down	1490 cm long 4x3x2 + 3x2x2 = 36 pcs	Timber 3.0 PE rope	Ø 3-4 mm 536 m	2.5 g/m 1.3 kg
EinJB1-4xyzI-IIIsn1-7 Elem in Jäkl Beam 1-4 walls xyz rows I-III cols south north	46x46 mm .. 1+7 44x44 mm .. 2-6 20 cm long 4x3x7+2x3x7 pcs	Plastics Density PA block	1-7: 2.78 dm³ all: 50.0 dm³	1.14 kg/dm³ 57 kg
FTJC 1234 abcd ud Fixator Tube Jäkel Column 1234 - walls abcd lines up down	90x90 mm 2 cm high .. up 1 cm high .. down 2x4x4 pcs	Plastics Density PA block	up: 162 cm³ do: 81 cm³ all: 3.89 dm³	1.14 kg/dm³ 4.4 kg
GJCJ 1-4 sn we ud Gothr Jäkel Column Jäkl 1-4 walls so+no west+east up+down	38x10 mm 12.6 cm long 4x4 + 2x4 pcs	Plastics Density PA tube	8.80 cm² 3.02 m 2.66 dm³	1.14 kg/dm³ 3.4 kg
GJC 1-4 bc sn ud Gothrue Jäkel Col 1-4 walls b+c sou+nor up+down	38x10 mm 12 cm long 4x4 + 2x4 pcs	Plastics Density PA tube	8.80 cm² 2.88 m 2.53 dm³	1.14 kg/dm³ 2.9 kg
PCC 1-4 sn we ud Pulley Cable Col 1-4 walls sou+nor west+east up+down	70x25 mm 7 cm long 4x4 + 2x4 pcs	Plastics Density PA tube	35.3 cm² 1.68 m 5.93 dm³	1.14 kg/dm³ 6.8 kg
PSU sn I-III Pulley Support Up south + north I-II-III columns	76x29.5 mm 7 cm long 2x3 pcs	Plastics Density PA tube	43.4 cm² 42 cm 1.82 dm³	1.14 kg/dm³ 2.1 kg
PSD sn I-III Pulley Supp Down south + north I-II-III columns	34x11 mm 5 cm long 2x3 pcs	Plastics Density PA tube	7.95 cm² 30 cm 0.24 dm³	1.14 kg/dm³ 0.27 kg
PHC 23 sn Pulley Head Col 2nd + 3rd walls south + north	44x12 mm 5 cm long 2x2 pcs	Plastics Density PA tube	12.1 cm² 20 cm 0.24 dm³	1.14 kg/dm³ 0.28 kg
CPC sw + se Concrete Pole Column south west+east	139x43 mm top 205x50 mm bott 665 cm high 2 pcs	EPV 9m/1.5kN prestressed concrete hollow cylinder	0.10 m³/pcs 0.21 m³	240 kg/pcs 480 kg
CPC nw + ne Concrete Pole Column north west+east	115x40 mm top 205x50 mm bott 900 cm high 2 pcs	EPV 9m/1.5kN prestressed concrete hollow cylinder	0.16 m³/pcs 0.31 m³	360 kg/pcs 720 kg
CCC sw + se Cable Concrete Cylinder south west+east	50x23.8 cm 200 cm long 2 pcs	Concrete Density ordinary concrete hollow cylinder	19.59 dm² 4 m 0.78 m³	2.3 kg/dm³ 1802 kg

MATERIAL	VOLUME 45x45 m²	MASS 45x45 m²	VOLUME 100x100 m²	MASS 100x100 m²
11 353.0	17.8 dm³	139.7 kg	88 dm³	690 kg
11 353.1	99.1 dm³	778.8 kg	490 dm³	3846 kg
15 230.3	3.9 dm³	30.6 kg	19 dm³	151 kg
S235JR	113.4 dm³	903.1 kg	560 dm³	4460 kg
S235JR+N	40.1 dm³	186.2 kg	198 dm³	920 kg
S235JRH	275.9 dm³	2145.1 kg	1362 dm³	10593 kg
Steel	550 dm³	4183 kg	2.7 m³	20659 kg
6x19 FE	16.1 m	6.5 kg	80 m	32 kg
6x19 Seale	547 m	575 kg	2701 m	2840 kg
7x19 INOX	2120.5 m	532.2 kg	10472 m	2628 kg
DIN 1480	-	23.8 kg	-	118 kg
Timber 3.0	1382 m	3.4 kg	6825 m	17 kg
Cables	4066 m	1141 kg	20.1 km	5634 kg
Concrete	1300 dm³	3002 kg	6.4 m³	14825 kg
Plastics PA	67 dm³	77 kg	332 dm³	381 kg

Comparison with APV-RESOLA Heggelbach DE - total used steel: 50t / 25x130m² ... 150 t / 100x100 m²
